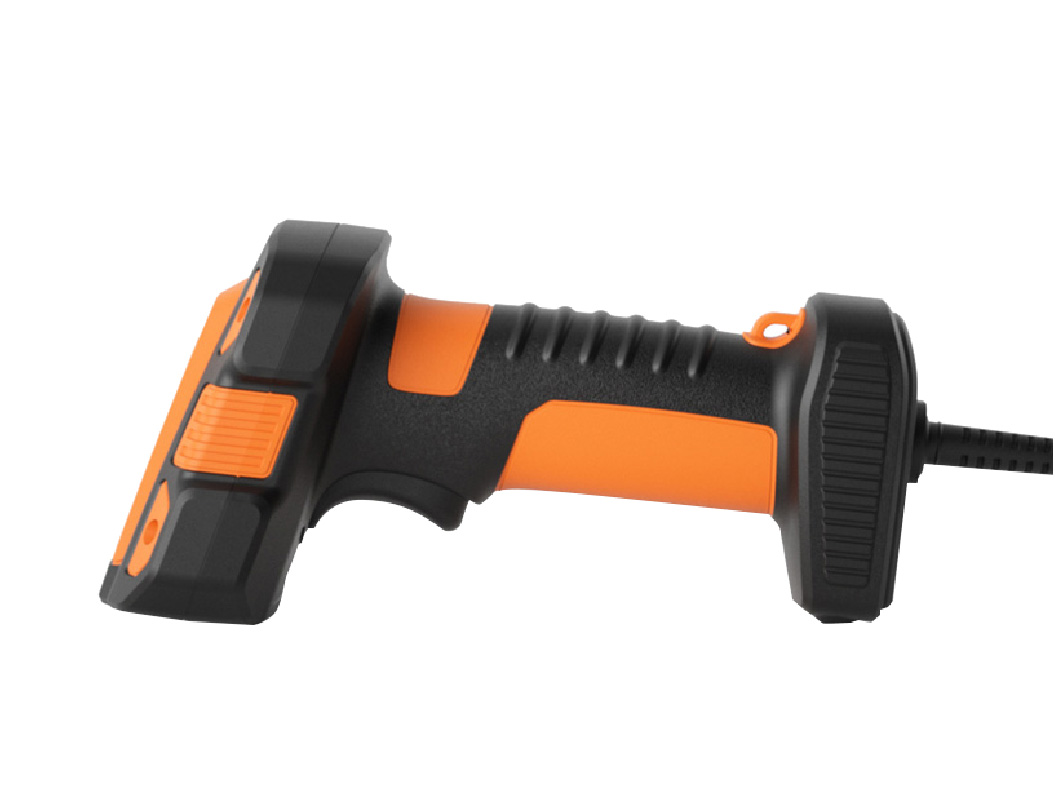

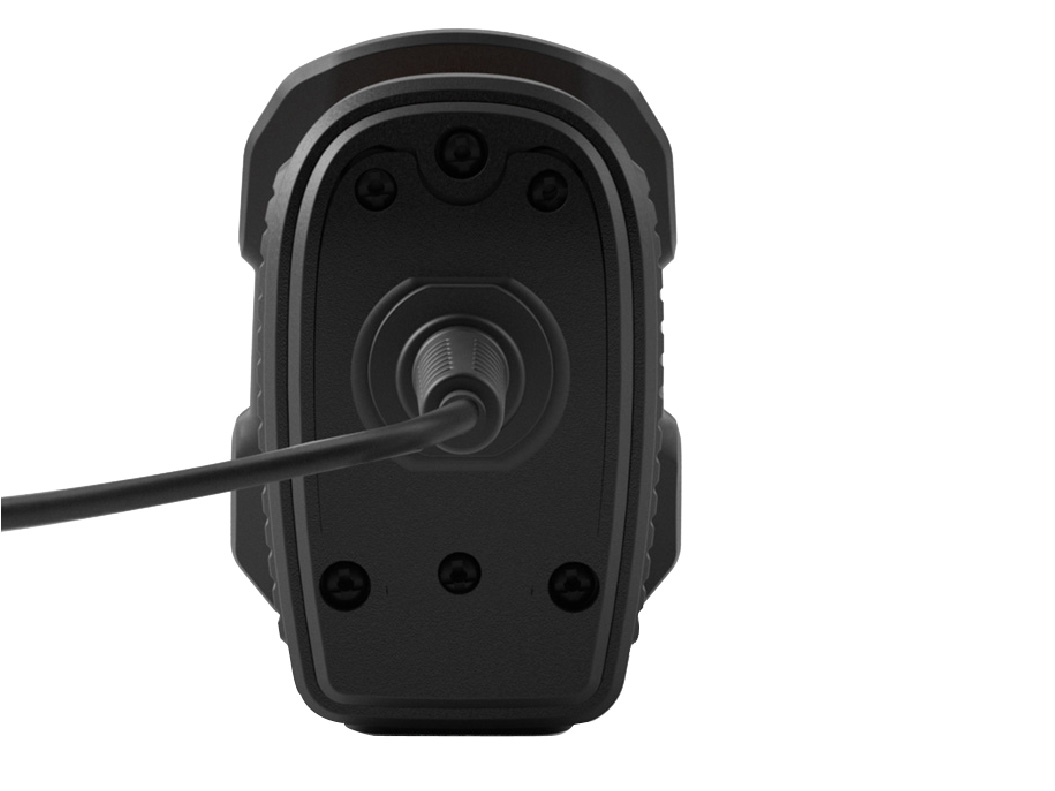

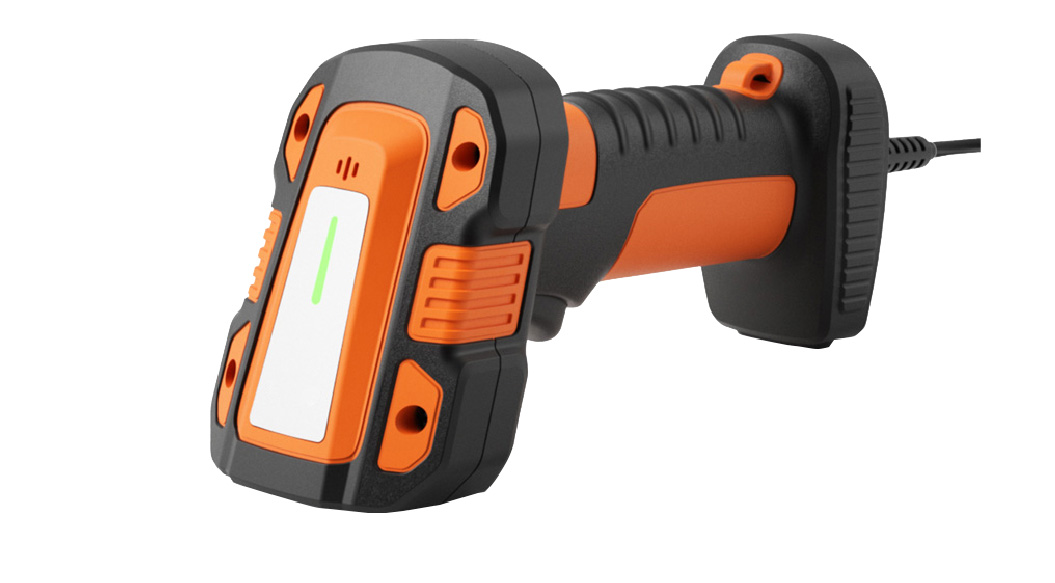

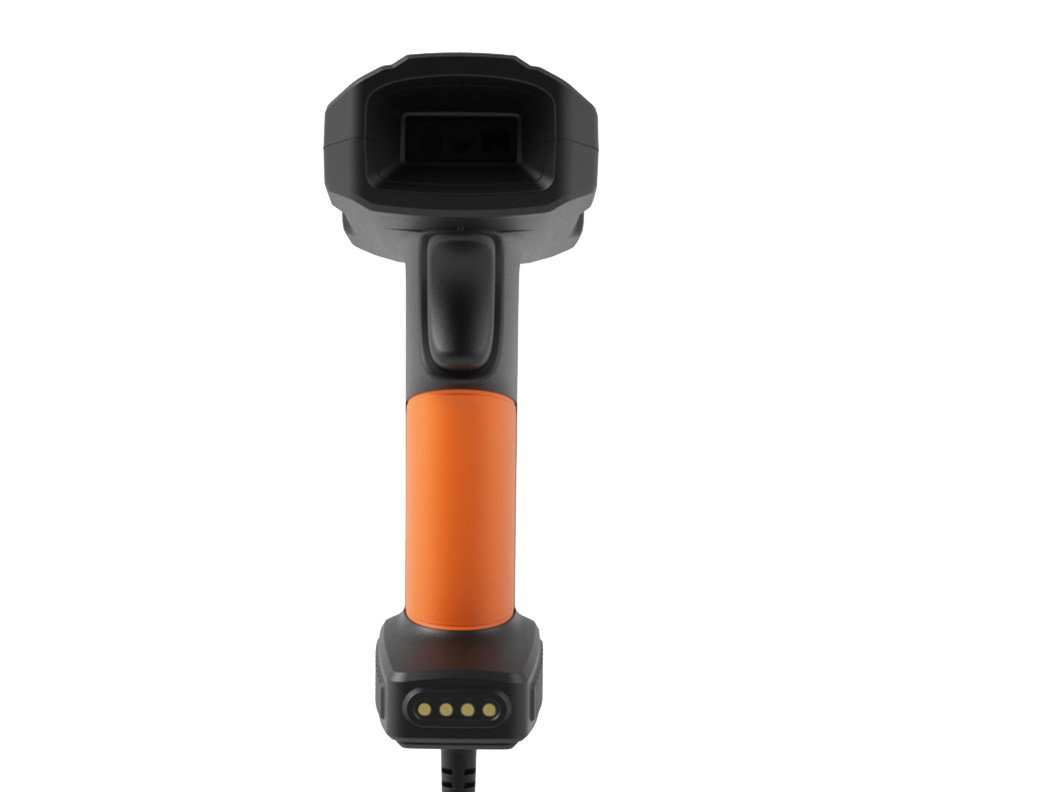

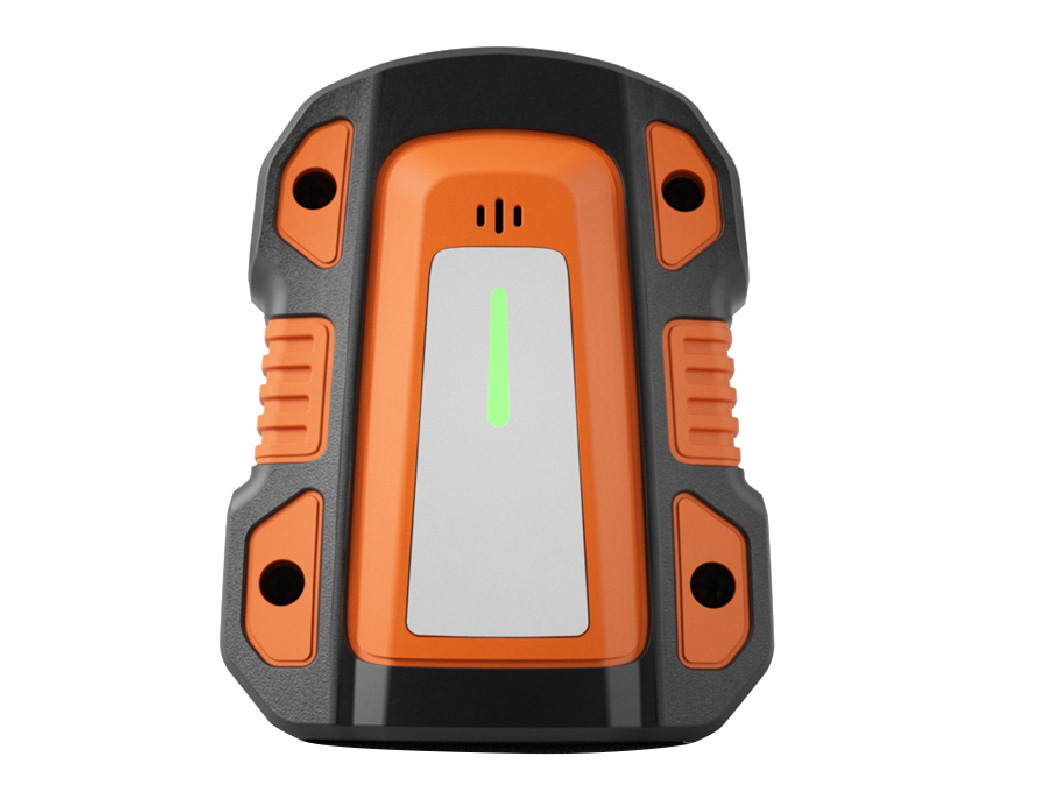

FM4
As a high-performance industrial barcode reader, FM4 can be used in scenarios such as SMT line mobile code reading, assembly line picking/assembly code reading, electronic test fixtures, and automation equipment integration. FM4 has the characteristics of simple and easy to use, it can open the lens in 1 second, autofocus in 3 seconds, and automatically adjust parameters in 30 seconds, and easily complete the code reading configuration.And FM4 is equipped with a new decoding algorithm and image processing filter, which can effectively improve the reading rate of various difficult-to-read DPM barcodes. Moreover, FM4 has an intelligent variable light source, which can automatically adapt to barcodes with different background colors, making debugging more convenient.
X4-05
X4-06
X4-07
X4-08
Specification

Receiver

Sensor

CMOS Image Sensor with global shutter

Number of pixels

1.3M1280 x 1024

Light emitter

Light source

High-intensity red LED and blue LED

Aimer

Laser dual-point positioning aimer Class II

Focus adjustment

Automatic

Reading

specifications

Supported

symbol

1D

Code128,GS1 128,Code39,Code93,codabar,2of5 (Industrial 2of5),EAN/UPC

2D

QRDataMatrixECC200)、PDF417Micro PDF417

Minimum

resolution

1D

3.3mil

2D

2.0mil

Reading distance

50mm to 450mm

I/O

specifications

Control

input

Points

2

Input type

Bidirectional voltage input

Maximum rating

30V

Minimum ON voltage

4V

Maximum OFF current

0.001A

Control

output

Points

3

Output type

3 optocoupler output

Maximum rating

30V

Maximum load current

1 output: 50 mA or less, 3-output total: 100 mA or less

Leakage current when OFF

0.1 mA or less

Residual voltage when ON

1 V or less

Ethernet

Supported protocol

TCP/UDP

Serial

communication

Communication speed

115200/57600/38400/19200/9600 bps

Supported protocol

RS232/RS485

USB

Communication

standard

USB 2.0 Full Speed compliant

Environmental

Resistance

Enclosure rating

IP65

Ambient temperature

to 50°C

Ambient storage temperature

-20°C to 70°C

Relative humidity

5 to 95% RH (No condensation)

Storage ambient humidity

5 to 95% RH (No condensation)

Ambient light

0 to 10000 lux

Operating environment

No dust or corrosive gas present

Rating

Power supply voltage

10 to 30V DC

Current consumption

0.5 to 1.5 A

Weight

Approx.215 g

DimensionsL x W x H

61.2 mm x 48.7 mm x 43.8 mm
