Scan mode

Push-button trigger/auto-sensing/continuous scanning

Communication interface

USB-HID keyboard/USB-COM virtual serial port

Wireless communication distance

Wireless 2.4G: 0-80m (open environment), Bluetooth: 0-20m (open environment).

Prompt way

Buzzer, LED light, vibration motor

How it's set up

Manually scan the setting code and press the key to set it in turn

Housing material

ABS+PC

Cable standards

USB straight line 1m

Exterior dimensions

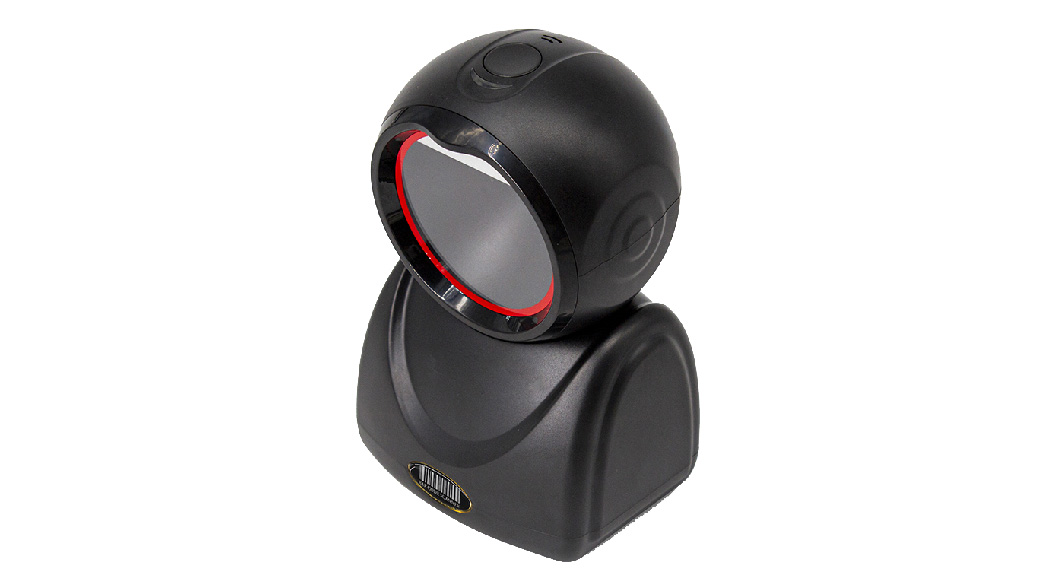

157mm× 70mm× 112mm (barcode scanner), 128mm× 81mm×89mm (seat charger).

Weight

173.5g (net weight), 510g (including packaging accessories).

Performance parameters

Internal storage

500K

Sensors

300,000 global CMOS

Resolution

640*480

Light source

White LED

Scan angle

± 60°, ±60°, 360° (elevation, declination, rotation).

Scan rate

120 frames/sec

Field of view

48° (H) x 30° (V)

Print contrast

15% minimum

Decode the kind

1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey,etc

2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile phone screen code reading

Minimum resolution

1D code 3MIL;QR code 5MIL

Depth of field

QR(20mil)

QR payment code (mobile phone code)

Data Matrix(10mil)

PDF 417(7mil)

15~160mm

50~320mm

5~110mm

30~125mm

EAN-13(13mil)

Code 39(8mil)

Code 128(7mil)

30~200mm

20~145mm

15~135mm

Electrical parameters

Input voltage

DC 5V±10%

Current

Operating: 350 mA, Standby: 130 mA

Battery

2000mAh lithium-ion battery

Charging time

4 hours

Battery life

10 days (standby), 24 hours (operating: scanning every 5 seconds)

Environmental parameters

Temperature

0°C-50°C(Working);-40°C~+60°C(Storage).

Humidity

5%-95% non-condensing

Ambient brightness

Max.5,000 Lux (fluorescent)

Seismic resistance

It can withstand a 1.5m drop in the air
