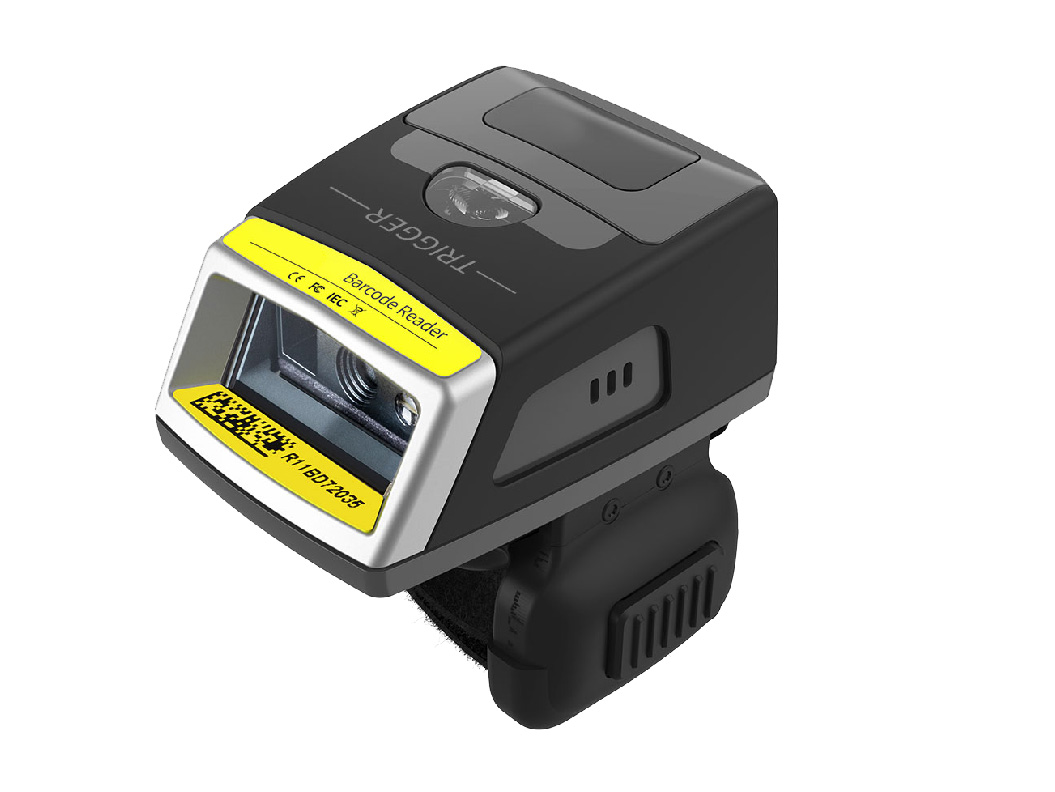

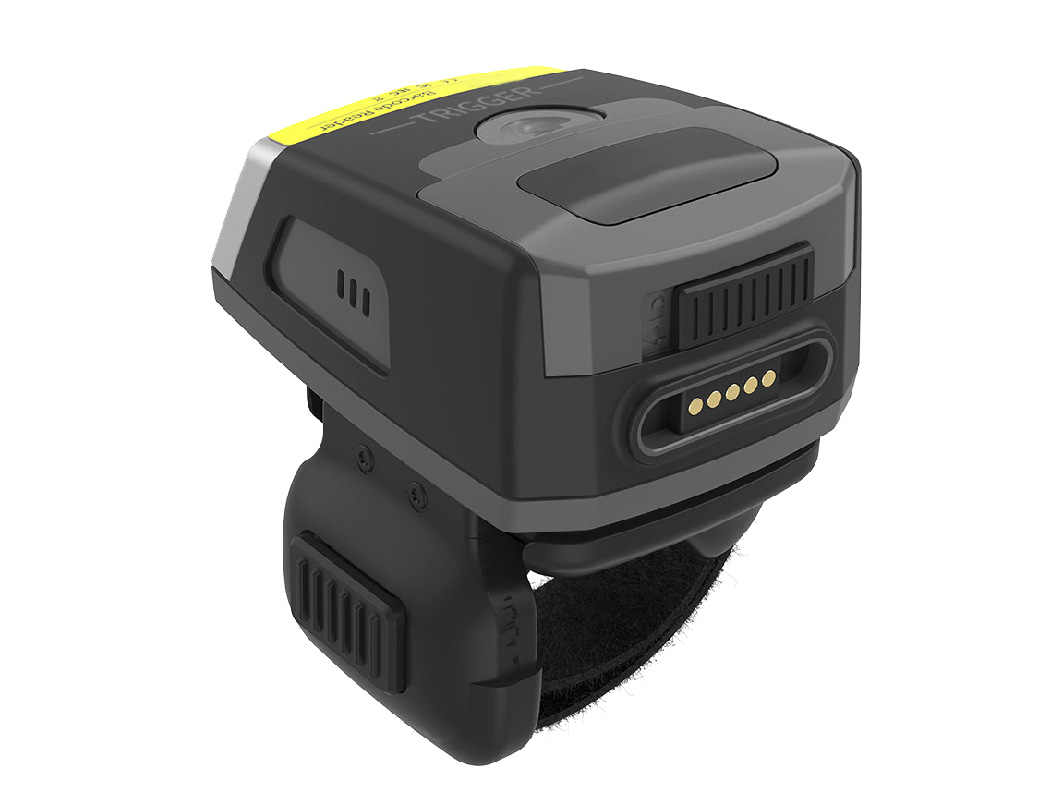

RS02N ring QR scanner is a new generation scanner for mobile scanning, picking, and sorting applications.
You can wear it on your finger to free up your hand to handle materials, goods, and packages while scanning. It is very comfortable to wear for a whole workingday, and can even improve 25%-30% over all productivity.
Dimensions | 55.0×39.2×51.2mm(L×W×H) | |
Weight | 65 grams | |
Material | Polycarbonate housing with overmold(PC+TPU) | |
Communication | Bluetooth HID,SPP,BLE with 30M distance, Support NFC pairing,RS232 cable(optional) | |
OS | lOS,Android,Windows,Mac,linux | |

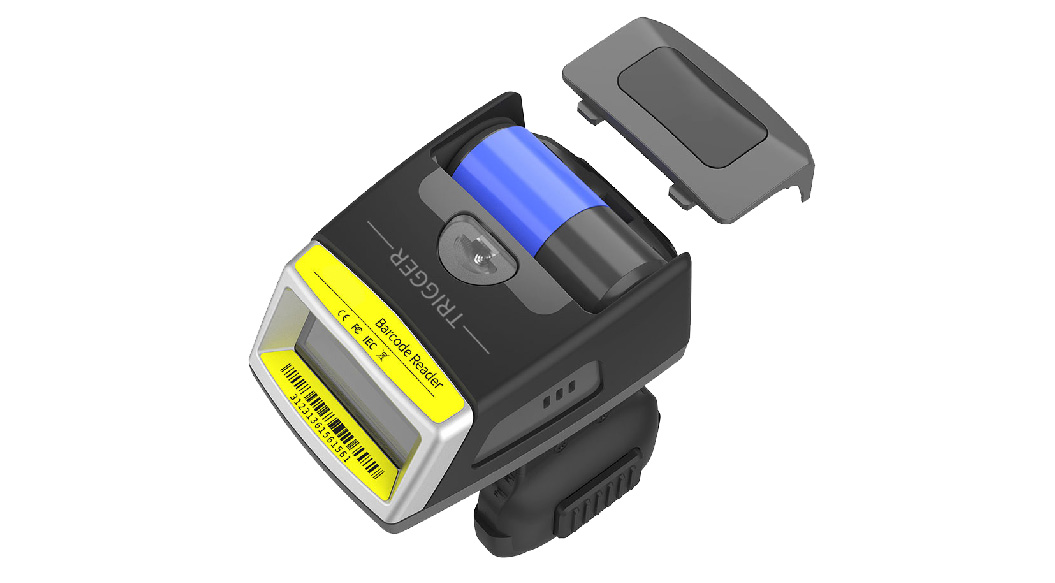

Battery power | Capacity | 550mAh |
Standby | >30 days | |
Charge time | 2 hours | |
Certificate | CE,FCC,IP65,IEC,MSDS,UN38.3 | |
Battery power |
Duration | Continuous trigger scanning interval | Decoding number | Working time |
5S | 7170 | 9.9 hours | ||
Scan Engine | N1 | |||
Scan mode | Level mode,Pulse mode,Sense mode | |||
Ambient illumination | 0~100,000 Lux | |||
Scanner performance | Sensor Type | 640×480 CMOS | ||
Light | illumination :White LED;Aiming:625nm Red LED | |||
Scanner Angle | ±60°,±60°,±360°(skew,pitch,Roll) | |||
Field of view | Horizontal:42°,Vertical:35.1° | |||
Contrast | ≥25% | |||
Barcode Type |
1D | Code 128,EAN-13,EAN-8,Code 39,UPC-A,UPC-E, Codabar,Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93,UCC/EAN-128,GS1 Databar,Matrix 2 of 5, Code 11,Industrial 2 of 5,Standard 2 of 5,Plessey, MSl-Plessey | ||
2D | PDF417、QR Code、Data Matrix | |||
Decoding depth & Max.Resolution (1mil=0.0254 mm) | EAN-13 | 65mm~330mm(13mil) | ||
PDF 417 | 65mm~110mm(6.67mil | |||
Code 39 | 65mm~150mm(5mil) | |||
Data Matrix | 50mm~110mm(10mil) | |||
QR Code | 45mm~140mm(15mil) | |||
Environmental parameters | Drop resistance | Pass 200 times 1.5m drop test | ||
Tumble Spec | 2,0003.28 ft./1m tumbles | |||
Temperature | Operating:-15℃ to 60℃ | |||
Storage:-20℃ to 60℃ | ||||
Humidity | <95%(non-condensing) | |||
">
