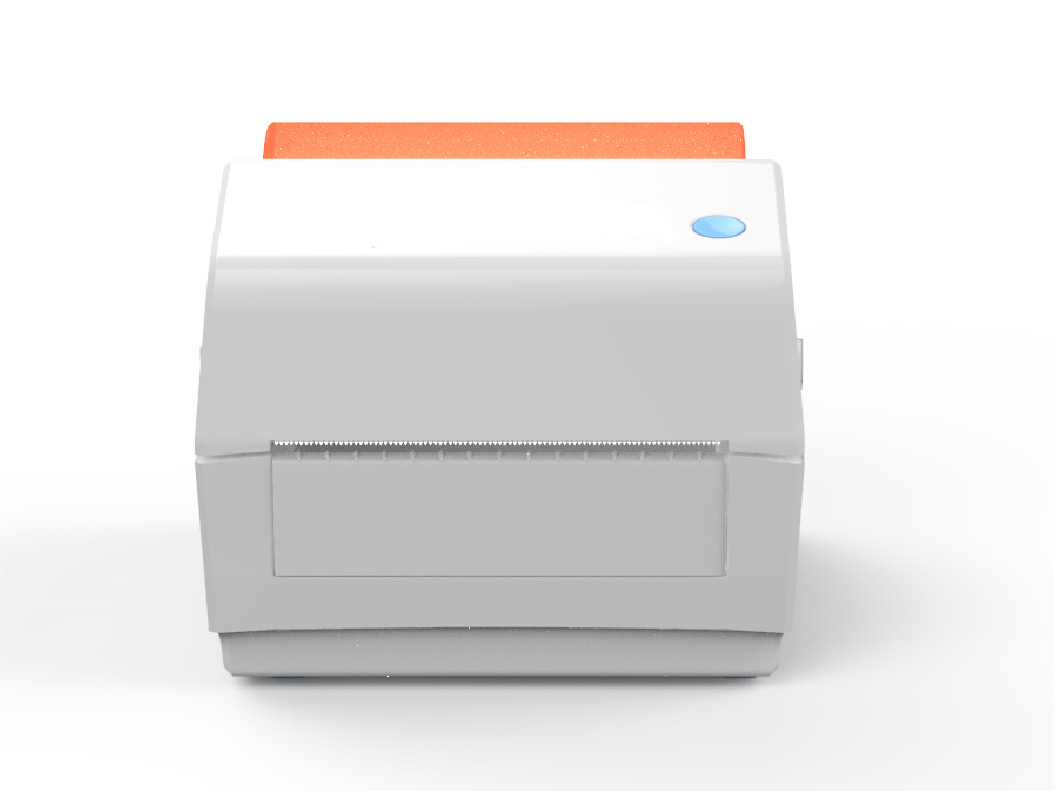

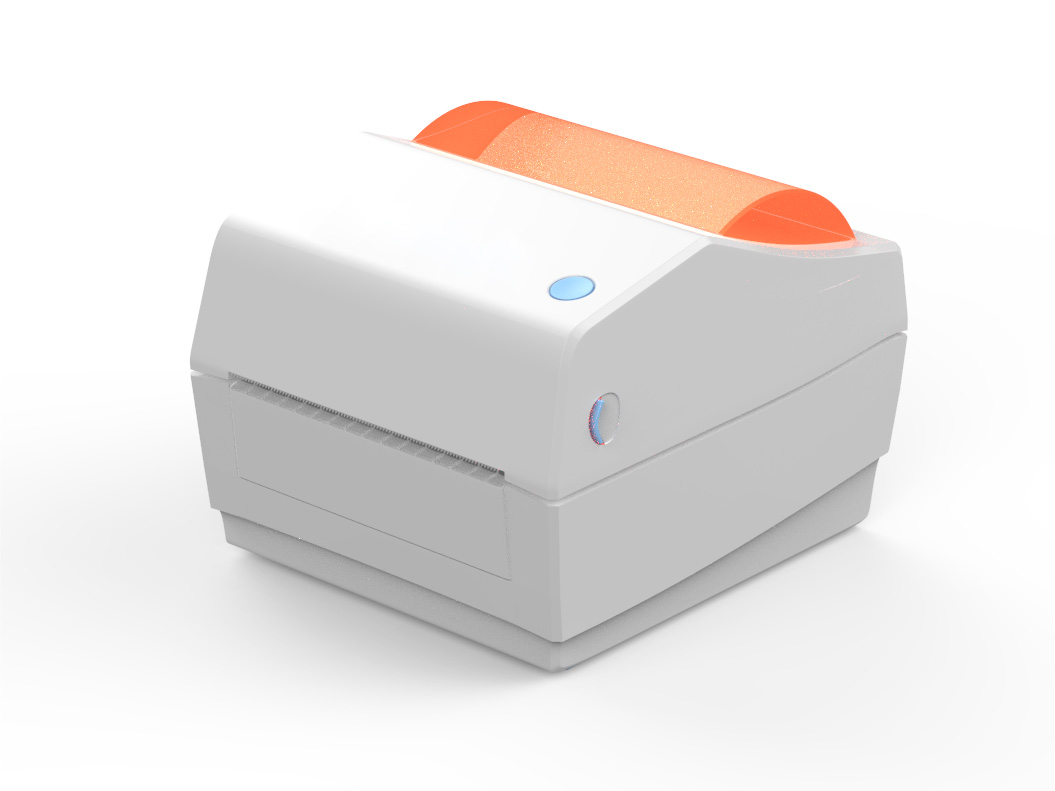

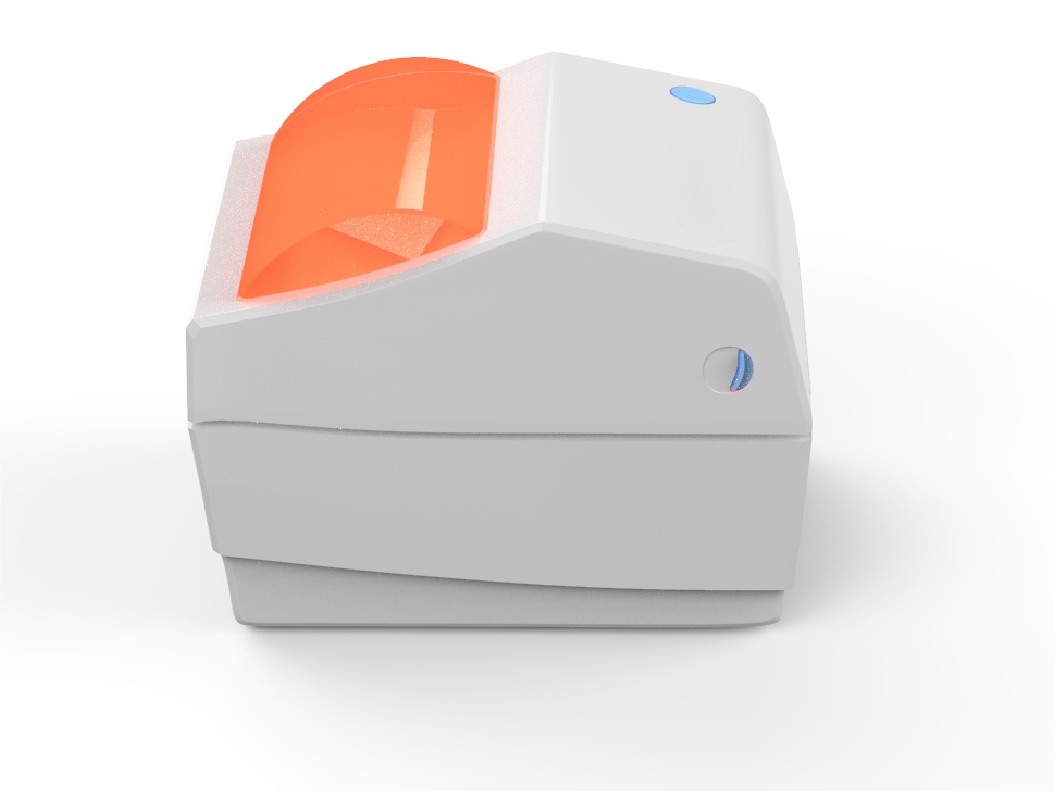

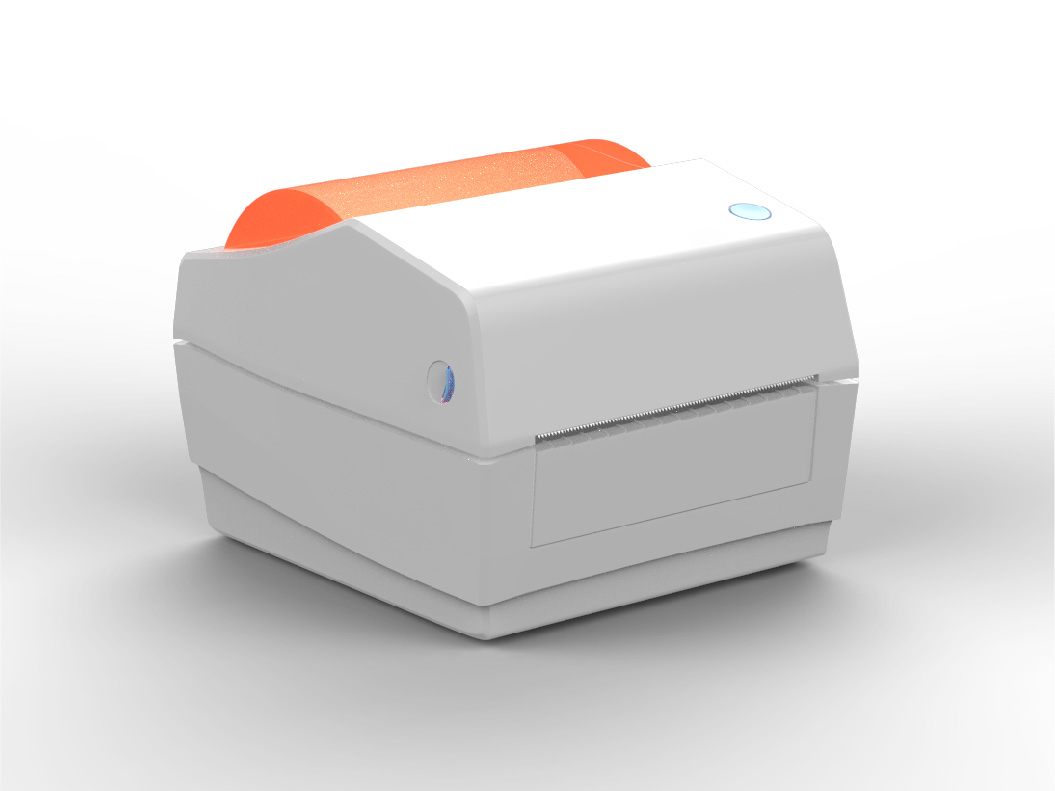

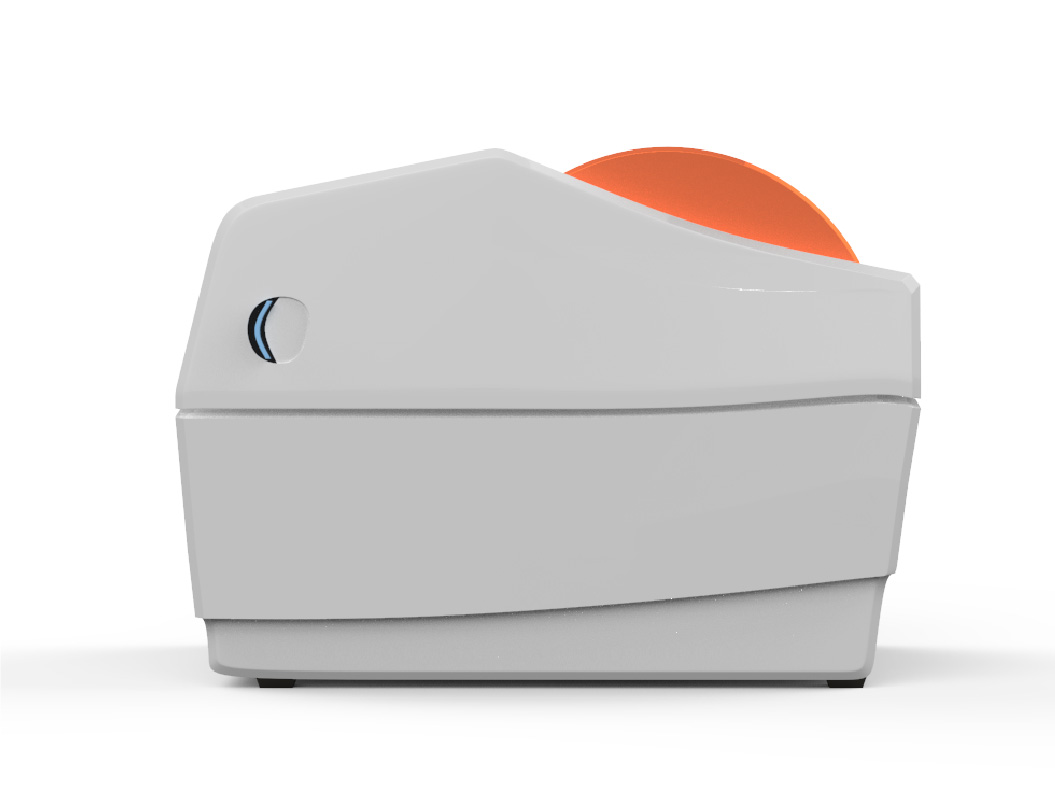

BP-2104K Thermal Label Printer

High-Speed Printing: Capable of 150mm/s for efficient printing in busy environments.

Large Paper Capacity: Accommodates a wide range of paper types and sizes.

Versatile Label Printing: Supports various label formats and heights.

Rapid Heat Dissipation: Ensures the printer remains cool during continuous use.

Intelligent Paper Retraction: Allows for precise control of paper during printing.

Durable Build: Equipped with a long-lasting SHEC printhead.

User-friendly: Features manual tearing for paper cutting and various sensor types for reliable operation.

Certified Safety: Comes with a 3C Certification standard.

Compact Design: Its dimensions and weight are suited for space-constrained environments.

2104K-16
2104K-17
2104K-18
2104K-19
2104K-20
Features
Specification
Download

The BP-2104K Mobile Printer is a high-speed, direct thermal printer designed for environments that require quick and efficient printing. With a spacious paper capacity and compatibility with a wide range of label formats, this printer is ideal for logistics, warehousing, and retail settings where versatility and reliability are essential. It also features rapid heat dissipation and intelligent paper retraction for continuous operation.

The BP-2104K offers a maximum printing speed of 150mm/s and a maximum printing width of 104mm, making it suitable for various label sizes. It supports label heights from 30mm to 250mm and utilizes the TSPL command set for easy integration with existing systems. The printer has a RAM of 2MB and flash memory of the same size, ensuring smooth operation and efficient data processing.

The printer features a durable SHEC printhead with a lifespan of 50km, ensuring long-term use. It also supports paper retraction, which is beneficial for precise label printing. The BP-2104K can handle paper types such as label paper, continuous paper, black mark paper, and folded paper, with width ranging from 26.7mm to 120mm and media thickness from 0.06mm to 0.18mm.

The printer operates within a temperature range of 0°C-45°C and a humidity range of 20%-90% RH. It is powered by a DC24V 2.5A adapter and has received a 3C Certification for safety and reliability.  it weighs 1.35kg, making it compact and easy to install in various settings.


Printer CharacteristicsPrinter NameBP-2104K
Printing MethodDirect Thermal
Resolution203dpi
Maximum Printing Speed150mm/s
Maximum Printing Width104mm
Label Height30mm-250mm
Voice/Command SetTSPL
Paper Retraction
Supported
MemoryRAM2MB
Flash Memory2MB
Print HeadPrint Head BrandSHEC
AdvantagesHigh Performance, Fast Speed
Print Head Life
50km
Paper Cutting/VoicePaper Cutting MethodManual Tearing
VoiceNot Supported
Media CharacteristicsPaper Warehouse/Loading MethodSupported
Paper TypeLabel Paper, Continuous Paper, Black Mark Paper, Folded Paper
Width26.7mm-120mm
Outer Diameter of Paper Roll130mm
Inner Diameter of Paper Roll25.4mm- 38mm
Media Thickness0.06mm-0.18mm
Sensor TypeSew Mark Detection, Black Mark Detection, Cover Open Detection, Paper Shortage Detection, Temperature Detection, Paper Retraction Detection
Operating ParametersOperating Temperature/Humidity

Temperature: 0°C-45°C

Humidity: 20%-90%

Storage Temperature/Humidity

Temperature: -10°C-60°C

Humidity: 10%-90% (Excluding Paper Rolls)

Electrical ParametersDC24V 2.5A
Agency Certification Standards
3C Certification
Physical ParametersDimension(L*W*H)217mm*182mm*171mm
Weight1.35kg
Communication Interfaces and FunctionsStandard Configuration

USB

Fonts/Graphics/SymbolsCharactersStandard GB18030 Simplified Chinese
Character Size

ASCII Font A: 12×24

ASCII Font B: 9×17

Chinese Characters: 24×24

Number of Columns

Font A-72 Columns/Font B-96Columns/Simplified, Traditional-36Columns

Line Spacing3.75mm (Adjustable Line Spacing via Command)
Extended Code Page

CP437,CP850,CP852,CP860,CP863,CP865,CP866,

WPC1250,WPC1251,WPC1252,WPC1253,WPC1254

Bitmap FontsSong Typeface
Graphic FunctionsSupported
User-Defined CharactersNot Supported
Direct Bitmap Printing
Supported
Barcode Types1DCode 39、39C、I25、Code 93、ITF25、EAN128、Code 128、 Codabar、 EAN-8、EAN8+2、EAN8+5、 EAN-13、EAN13+2、EAN13+5、 UPC-A、UPCA+2、UPCA+5、 UPC-E、UPCE+2、UPCE+5 MSIC、ITF14、EAN14、CODE11、POST
2DQRCODE、PDF417(Optional)
OthersProcessor

GD32F303VCT6_MCU

System Support Platform

XP/Win7/Win8/Win10/ios/Android/Linux/MacOS
